Sequential

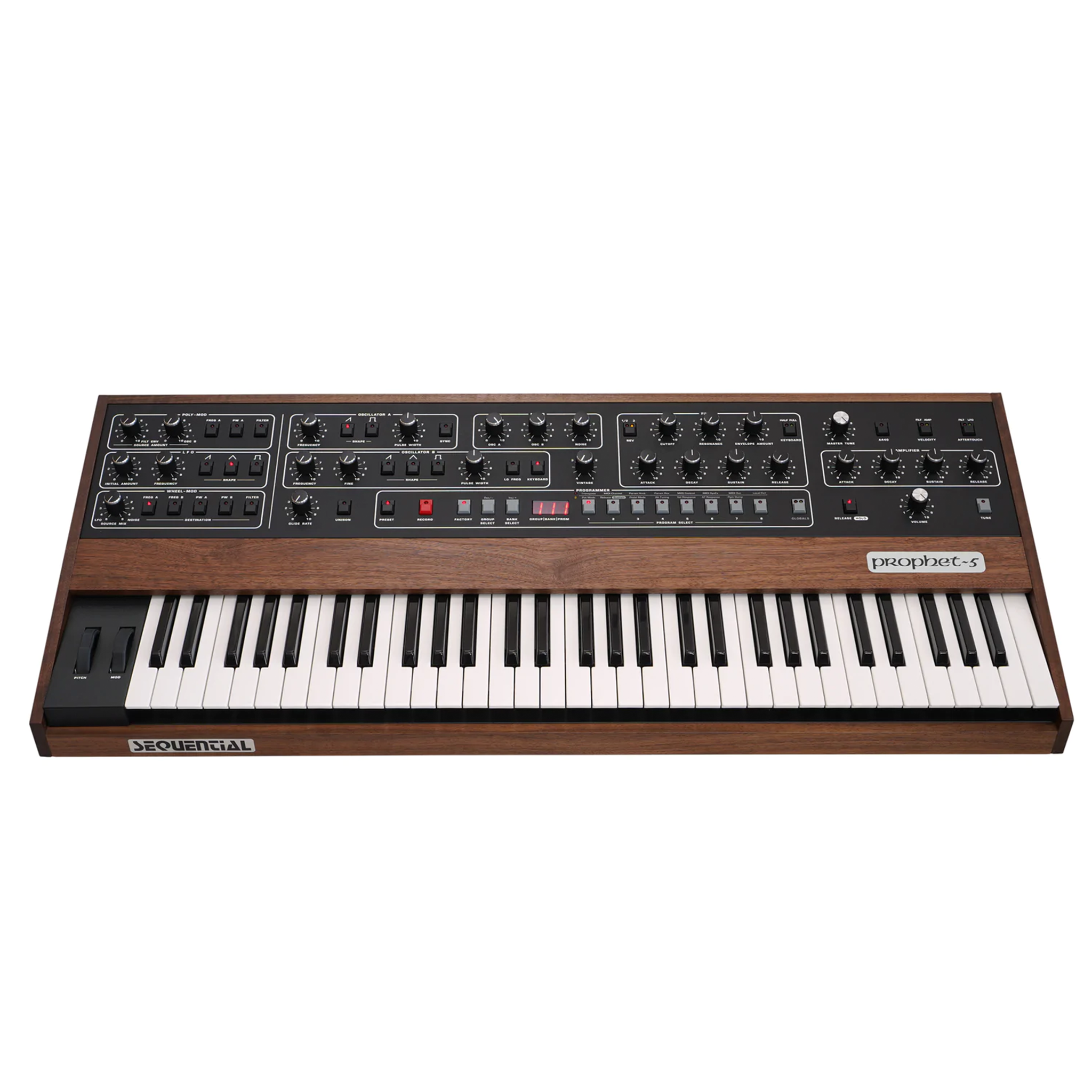

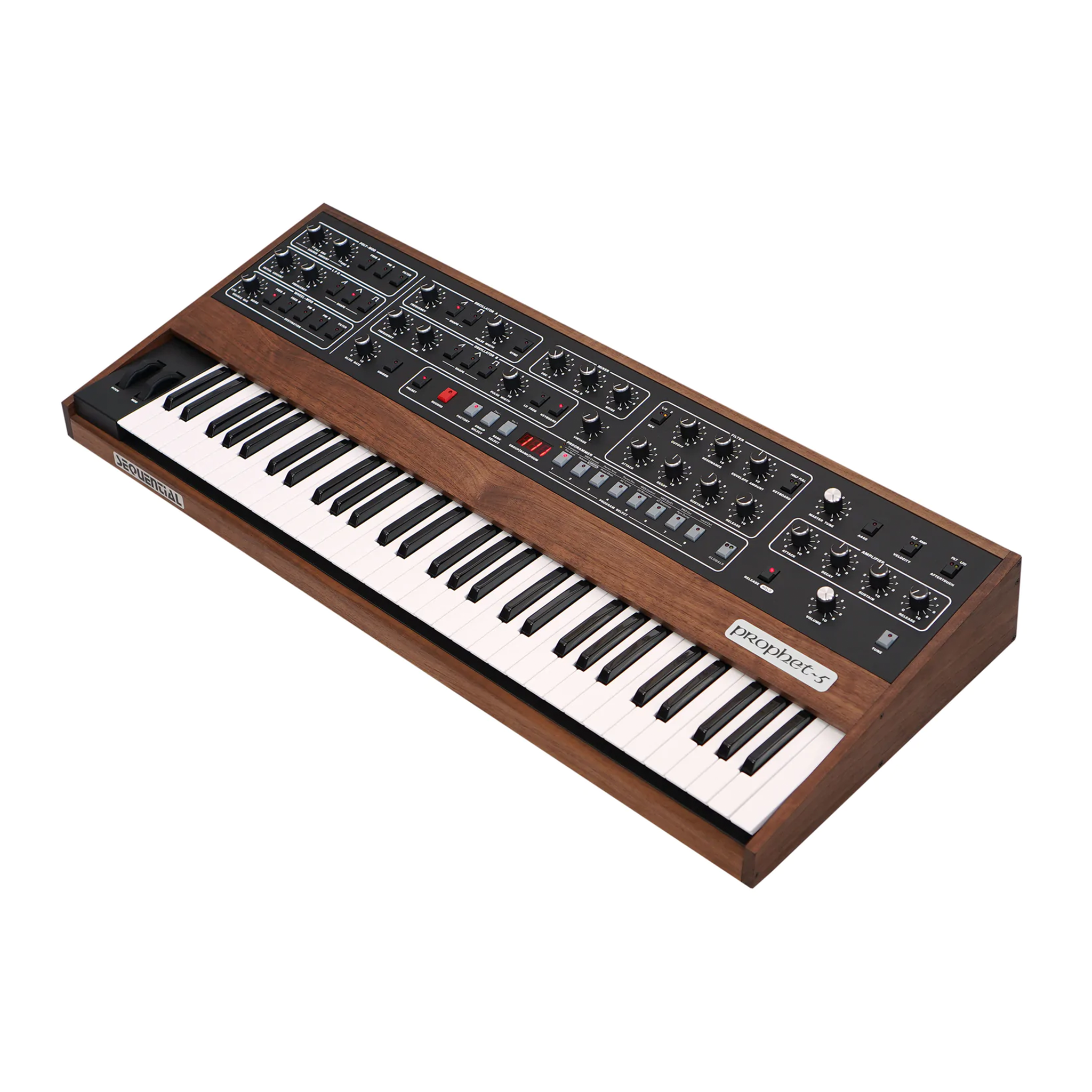

Sequential Prophet-5 Analog 5-Voice Polyphonic Synthesizer

Regular price $ 3,599.00 USD
Regular price Sale price $ 3,599.00 USD
Sale Sold out

First Run Serial Numbers In Stock: 104 & 106 (details)

The new Prophet-5 is Dave Smith's timely return to the analog poly synth that changed the world. It’s “the best of all Prophet-5s” as Dave puts it because it embodies all three revisions of the legendary synth — Rev1, Rev2, and Rev3 — through the use of genuine Curtis analog VCOs and filters (as in the Rev3) as well as new 2140 low-pass filters designed by Dave Rossum, like the 2040 filters he designed in the original Rev1 and Rev2. A Rev switch lets you choose between the two filter designs.

The result is as pure a renewal of an analog classic as you could wish for, with the authentic, muscular sound of the original and the roadworthiness of a state-of-the-art modern instrument.

 Specs

OSCILLATORS
  • Two authentic CEM 3340 VCOs per voice
  • Simultaneously selectable wave shapes. Oscillator A: sawtooth, pulse. Oscillator B: sawtooth, triangle, pulse.
  • Pulse width per oscillator
  • Hard sync: oscillator 1 syncs to oscillator 2
  • Low frequency mode (oscillator 2)
  • Keyboard tracking on/off (oscillator 2)
MIXER
  • Oscillator 1 amount
  • Oscillator 2 amount
  • White noise amount
LOW-PASS FILTER
  • Four-pole, resonant, low-pass filter per voice
  • Switchable between authentic versions of the Prophet-5 Rev1/2 filter and Prophet-5 Rev3 filter
  • Rev1/2 filter is a Dave Rossum-designed 2140, the modern counterpart of the original 2040 filter found in the Prophet-5 Rev1 and Rev2
  • Rev3 filter is a Doug Curtis-designed CEM 3320
  • Filter can be driven into self-oscillation with the Resonance control
  • Keyboard tracking: off, half, full
FILTER ENVELOPE
  • Four-stage (ADSR) envelope generator
  • Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
  • Four-stage (ADSR) envelope generator
  • Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
  • Three wave shapes: sawtooth, triangle, square. All waveshapes can be engaged simultaneously
  • Both Initial Amount and mod wheel control
  • Mod destinations: oscillator A frequency, oscillator B frequency, oscillator A and B pulse width, filter cutoff
POLY MOD
  • Sources: filter envelope and oscillator B
  • Destinations: oscillator A frequency, oscillator A pulse width, filter cutoff
VINTAGE KNOB
  • Recreates the characteristics of various Prophet-5 models by varying the behavior of oscillators, envelopes, amplifiers, and other parameters. Go from a very stable “4” — as in Prophet-5 Rev4, (the new version) — all the way to “1,” as in Prophet-5 Rev1, the rarest and most temperamental of all Prophet-5s.
AFTERTOUCH
  • Channel (mono) aftertouch
  • Destinations: filter cutoff frequency, LFO amount
PERFORMANCE CONTROLS
  • Full-sized, semi-weighted, premium Fatar 5-octave keyboard with velocity and aftertouch
  • Mod wheel
  • Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
  • Polyphonic glide (portamento)
  • Unison (monophonic) mode with configurable voice count, from one to all five voices and key modes
  • Preset switch: when off, the front panel is live; what you see is what you hear
PATCH MEMORY
  • 200 user and 200 factory programs in 5 banks of 40 programs each
  • Direct program access, including Prophet 5-style single-button access to the current set of 8 programs

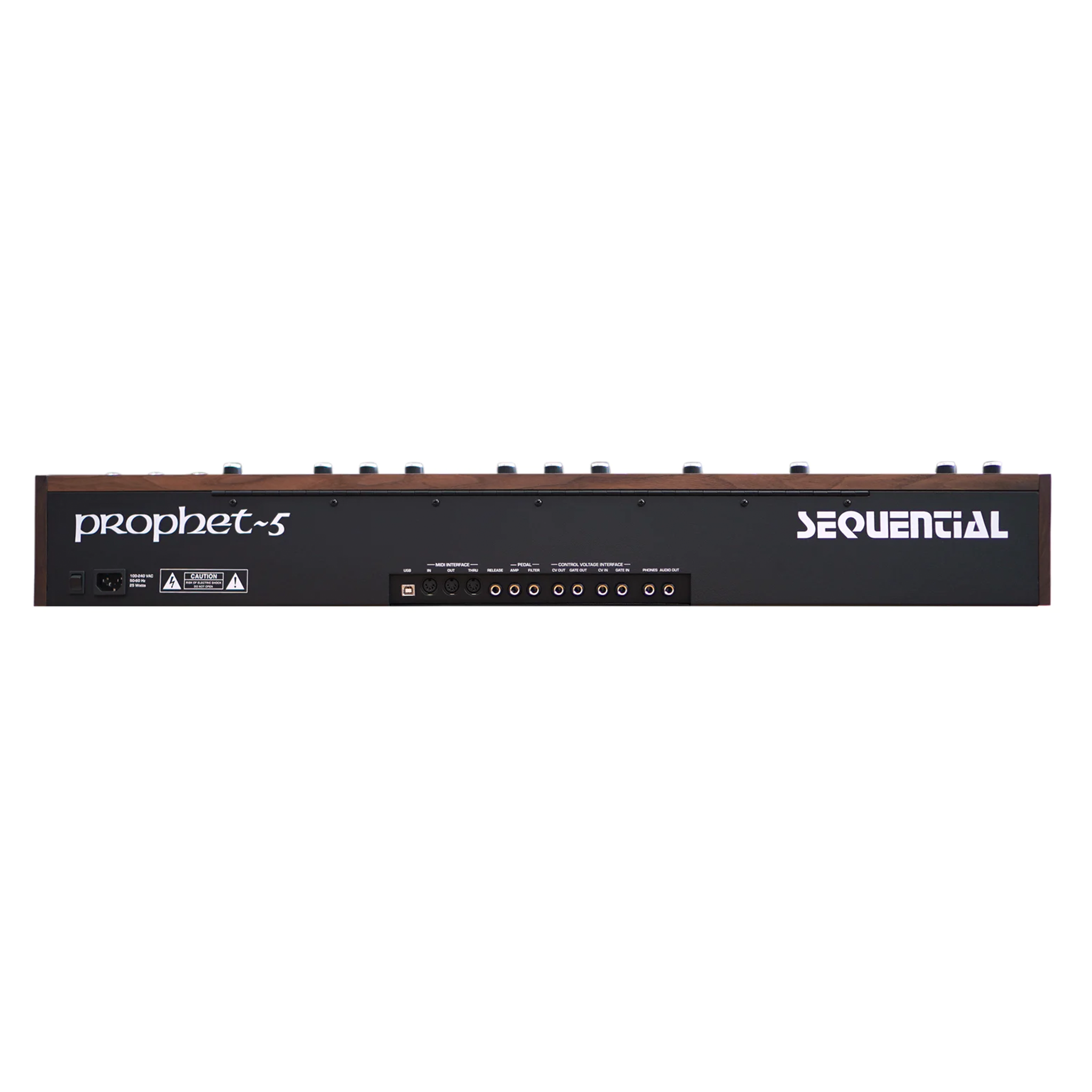

IN/OUT
  • Mono output (1 x 1/4” phone jack)
  • Headphone output (stereo, 1/4” phone jack)
  • MIDI in, out, and thru ports
  • USB for bidirectional MIDI communication
  • Control voltage in/out (1 x 1/4” phone jack) 0- +5V input/output signal. Configured for 1-volt-per-octave operation.
  • Gate in/out (1 x 1/4” phone jack). Accepts a 1.5 to 15-volt on/off signal to gate the envelopes of a single voice on the Prophet-5. Outputs a 15-volt on/off used to gate the envelopes of an external synth.
  • Low-pass filter cutoff expression pedal input
  • Volume expression pedal input
  • Sustain footswitch input
POWER
  • IEC AC power inlet for internal power supply
  • Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; Prophet-5: 20 watts maximum power consumption.
PHYSICAL SPECS
  • 37.37” L x 16.35 W x 5.95″ H (94.92 cm x 41.52 cm x 15.11 cm)
  • 32 lbs (14.51 kg)
  • Roadworthy all-steel construction with premium black walnut heartwood body and trim
